SkyRC T1000 Charger AC/VDC 2x20A 1000W

Manual: T1000_Instruction_Manual_EN_V1.0.pdf

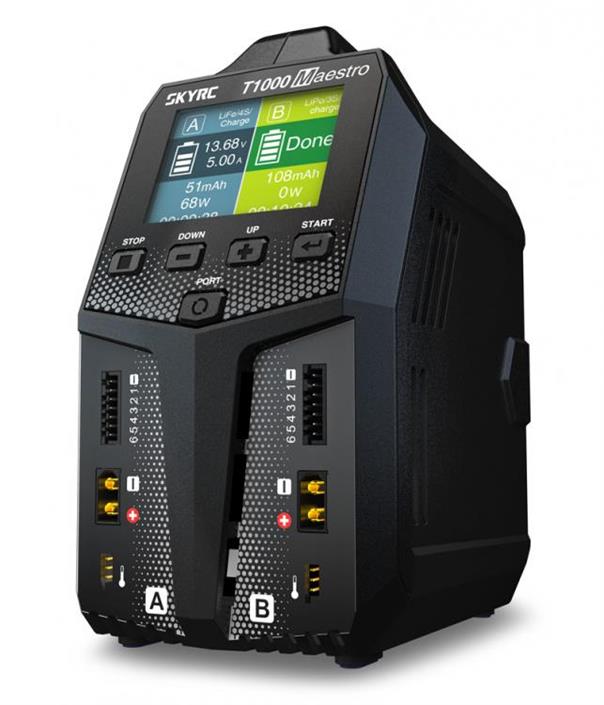

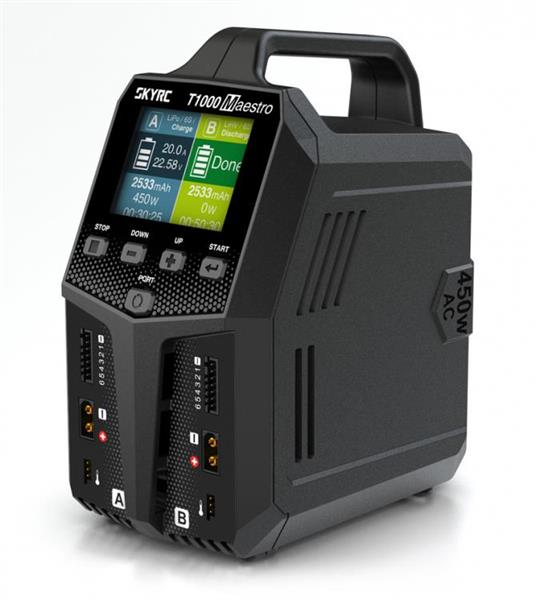

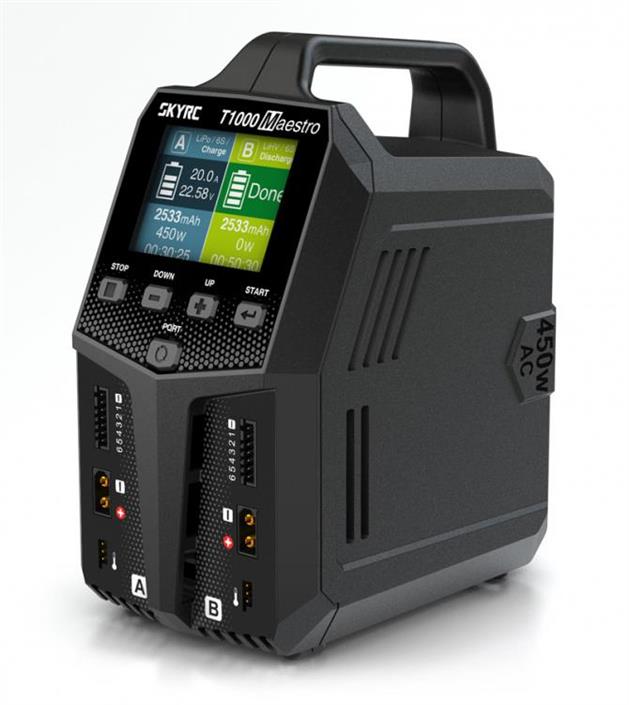

SkyRC T1000 Maestro Charger

Arm® Cortex®-M4 and HyperBoost Power Couple

Supercharged by ARM Cortex®-M4

Push your next RC racing trip beyond the edge with SkyRC T1000! The Arm Cortex-M4 chip takes our most versatile, dual output T1000 into another dimension with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM single precision instructions and data types.

AC/DC Dual Input. Efficient. Beyond.

• Dual ports work independently to charge two battery packs efficiently and simultaneously. RC hobbyists can flexibly choose AC or DC input according to the scenarios.
• In AC mode, the charging power is up to 450W, while the performance is even more powerful, up to 1000W in DC mode. Whether you are a beginner or an RC guru engaging in racing, it is the charger to push the limits of what is possible!

Smart Power Distribution

When a single port works, the T1000 will be pumping full power into that port! The charging power is dynamically and intelligently distributed in the circumstance that two ports work at the same time. Whenever either port finishes working, the other port will fully charge at full power. The total power is always used intelligently and efficiently! Charging is so flexible!

Short circuit, Overload, and Reverse polarity protection are all included!

Digital Power

T1000 is not only professional in charging but also can act as a digital power supply. After clicks on the menu, T1000 is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-15A current. Short circuit, Overload, and Reverse polarity protection are all included!

Discharger, PD Hub & T1000. Dream Team

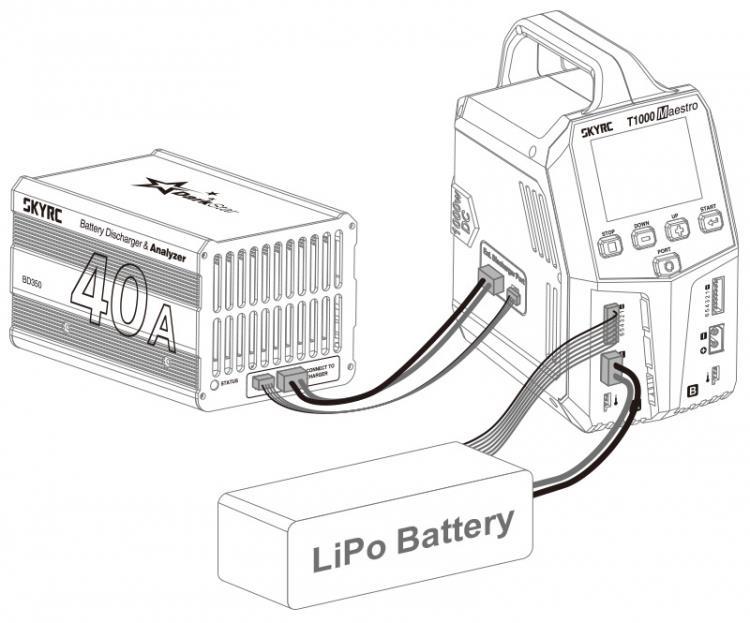

The newly-released BD350 (sold separately) discharger boasts a maximum discharge current of 40A when working with T1000. Rapid discharging at such a rate is definitely your cutting edge.

PCH-150 Power Charging Hub

The 1A3C PD Power Charging Hub is specially designed for RC hobbyists, with a full load power of 150W. The design incorporates a precision aluminum unibody enclosure that is strong, light, and durable with high thermal conductivity. Its thermal conductivity is more than that of ordinary die-casting aluminum.

Battery Health, Benchmarking

When working with BD3504, the T1000 charger can use the tailored SkyRC Charger Master3 to view or export the battery's discharge curve in real time. Various batteries' discharging curves can be plotted for precise comparison and analysis, so defective batteries have nowhere to hide.

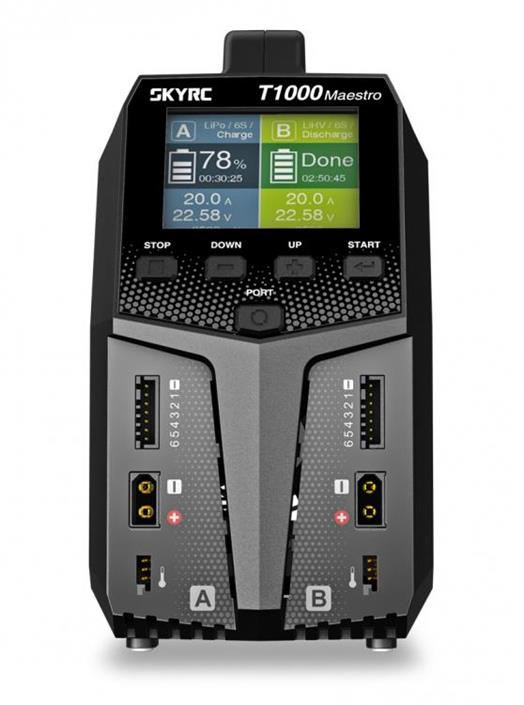

ColorX: Easy to charge, Easy on the eyes.

Discover a new ColorX interface introduced by T1000 based on simple and textured visuals! The tailor-designed light cyan and green color scheme is for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI. Charging doesn't have to be boring, and neither does life!

Charge it cool.

Within the sleek enclosure lies a groundbreaking thermal system designed to let Arm Cortex-M4 fly through heavy workloads at screaming-fast speeds — and stay whisper quiet. The fan will adjust the speed accordingly and dissipate heat more effectively according to the different power usage.

Charge in your language

ColorX is designed to be easily localized and comfortably engaged. The interface is currently available in English, Dutch, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.

Specifications:

• Case Material: Plastic
• Case Size: 190.3x153.5x100mm
• Weight: 1370g
• Display Type: Color X
• DC Input Voltage: 10-30V
• AC Input Voltage : 100-240V

Charger power:

• AC: 450W MAX
• DC: 1000W MAX

Discharge power:

• Main port: 10W
• Balance port: 37W MAX
• External discharge: 350W MAX

Batteries:

• Battery Types/Cells:
• LiPo/LiHV/LiFe/LiIon: 1-6cells
• NiMH/NiCd: 4-15cells
• Pb: 3S/6S/12S

Charge currents:

• LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A
• Parallel：20.0-35.0A

Discharge currents:

• LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
• External discharge：0.1-40A

Balance current

• LiPo/LiFe/LiIon/LiHV：1.5A MAX
